MED-08 · Health Electronics
Continuous monitoring patch electronics
Miniature sensing, fine-pitch assembly, compact power and antenna-constrained interfaces.
Project context
A representative engineering program
Miniature sensing, fine-pitch assembly, compact power and antenna-constrained interfaces.
System architecture
How the electronics are organized
Miniature sensing, fine-pitch assembly, compact power and antenna-constrained interfaces.
Engineering risks to close
What must be resolved before release
- Maintain clean fine-pitch and sensing assembly.
- Protect antenna behavior from battery and enclosure effects.
- Control programming and lot identity.
Validation plan
Evidence expected before production
- Solder-quality and programming-yield checks.
- Current-consumption, radio recovery and handling tests.
Decision-ready evidence packet
What a comparable RFQ should define
This checklist turns the technical story into reviewable inputs and release records. It describes what buyers and manufacturers should agree—not a claim that every listed record applies to every build.
Design baseline
Released schematic or block diagram, interface table, power states, critical constraints, and revision owner.
Manufacturing release
Gerber or ODB++, stack-up, centroid data, assembly drawings, approved DFM dispositions, and panel assumptions.
Material control
Released BOM revision, manufacturer part numbers, AVL or alternate rules, no-substitute lines, MSL handling, and exception approvals.
Validation record
Test method, acceptance criteria, sample or serial identity, measured result fields, and disposition. Example scope: Solder-quality and programming-yield checks.
Production release
First-article status plus the agreed SPI, AOI, X-ray, ICT, FCT, programming, rework, OQA, labeling, and packing records.
Project-specific fields, retention periods, sampling rules, measured limits, and customer approvals are confirmed during RFQ and protected under the applicable confidentiality agreement.
Development and production controls
Manufacturing scope represented here
- Fine-pitch process control.
- Programming fixture.
- Lot traceability.
Technical image review
Board-level evidence

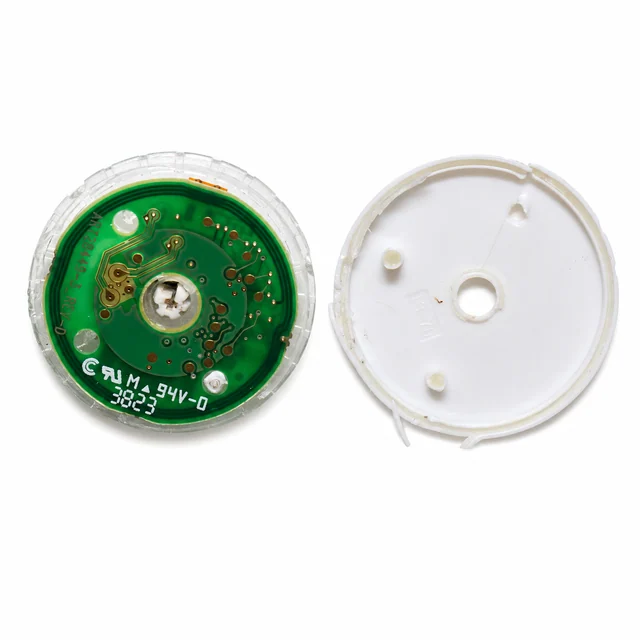

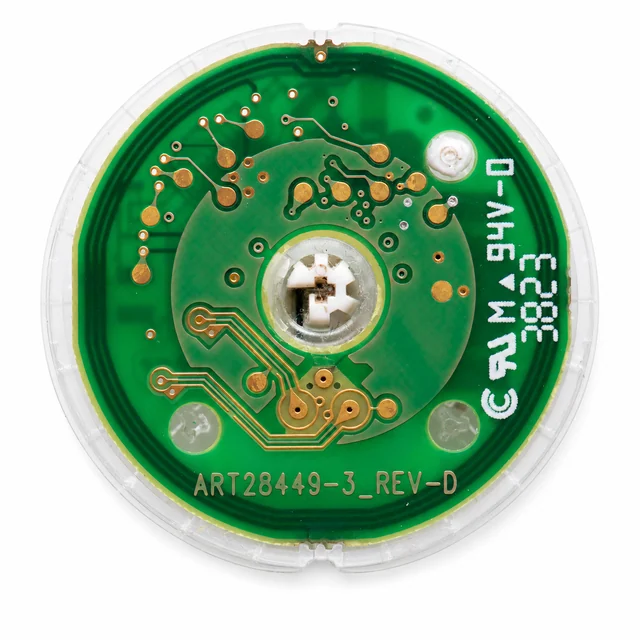

White-background views are published to make component placement, interfaces and assembly boundaries easier to inspect.
