MED-11 · Health Electronics
Infant-monitor transmitter electronics
Compact sensing or audio interfaces, regulated power, radio operation and enclosure controls.
Project context
A representative engineering program
Compact sensing or audio interfaces, regulated power, radio operation and enclosure controls.
System architecture
How the electronics are organized
Compact sensing or audio interfaces, regulated power, radio operation and enclosure controls.
Engineering risks to close
What must be resolved before release
- Separate low-level input from switching and RF noise.
- Stabilize transmit-burst power behavior.
- Define recovery after power loss or pairing loss.
Validation plan
Evidence expected before production
- Input-noise, pairing/range and transmit-current tests.
- Brownout, charge, button and endurance tests.
Decision-ready evidence packet
What a comparable RFQ should define
This checklist turns the technical story into reviewable inputs and release records. It describes what buyers and manufacturers should agree—not a claim that every listed record applies to every build.
Design baseline
Released schematic or block diagram, interface table, power states, critical constraints, and revision owner.
Manufacturing release
Gerber or ODB++, stack-up, centroid data, assembly drawings, approved DFM dispositions, and panel assumptions.
Material control
Released BOM revision, manufacturer part numbers, AVL or alternate rules, no-substitute lines, MSL handling, and exception approvals.
Validation record
Test method, acceptance criteria, sample or serial identity, measured result fields, and disposition. Example scope: Input-noise, pairing/range and transmit-current tests.
Production release
First-article status plus the agreed SPI, AOI, X-ray, ICT, FCT, programming, rework, OQA, labeling, and packing records.
Project-specific fields, retention periods, sampling rules, measured limits, and customer approvals are confirmed during RFQ and protected under the applicable confidentiality agreement.
Development and production controls
Manufacturing scope represented here
- Mixed-signal assembly.
- Radio test planning.
- End-of-line fixture.

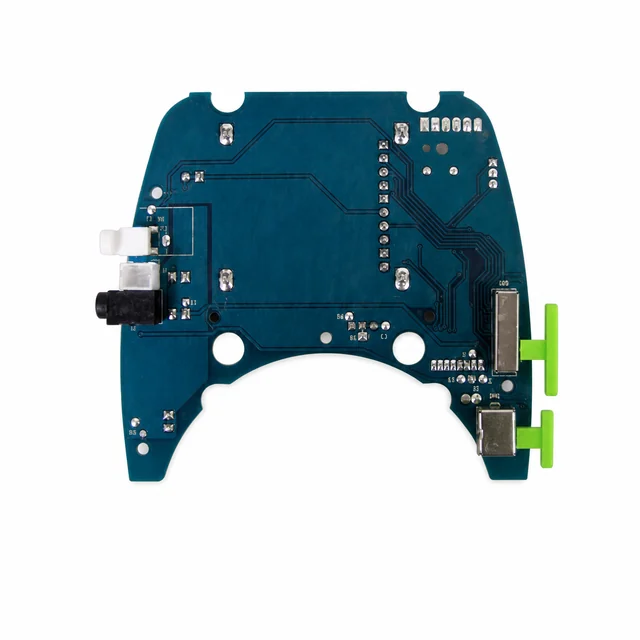

Technical image review
Board-level evidence
White-background views are published to make component placement, interfaces and assembly boundaries easier to inspect.
