ENG-01 · Energy & Power
Intelligent Wireless Battery Management System PCBA
A representative engineering architecture for pack-level safety supervision, battery-state estimation, fault diagnostics, data logging, and wireless cell-monitor communication.
Project context
A representative engineering program
A representative engineering architecture for pack-level safety supervision, battery-state estimation, fault diagnostics, data logging, and wireless cell-monitor communication.
System architecture
How the electronics are organized
Cell-monitoring nodes report voltage and temperature data over a wireless link to a gateway MCU, while the main control board coordinates diagnostics, logging, regulated power, and Ethernet, USB, or vehicle-network communication.
Engineering risks to close
What must be resolved before release
- Maintain synchronized, dependable cell data when the RF link is obstructed or congested.
- Keep SOC and SOH estimates stable across temperature, aging, and changing load profiles.
- Meet low standby-current, EMC, isolation, and fail-safe requirements in one compact controller.
Validation plan
Evidence expected before production
- Calibrate voltage and temperature channels and correlate SOC and SOH estimates with laboratory cycling data.
- Exercise packet loss, node dropout, brownout, sensor disagreement, and communication-recovery scenarios.
- Complete RF coexistence, EMC and ESD, thermal, sleep-current, and environmental stress testing.
Decision-ready evidence packet
What a comparable RFQ should define
This checklist turns the technical story into reviewable inputs and release records. It describes what buyers and manufacturers should agree—not a claim that every listed record applies to every build.
Design baseline
Released schematic or block diagram, interface table, power states, critical constraints, and revision owner.
Manufacturing release
Gerber or ODB++, stack-up, centroid data, assembly drawings, approved DFM dispositions, and panel assumptions.
Material control
Released BOM revision, manufacturer part numbers, AVL or alternate rules, no-substitute lines, MSL handling, and exception approvals.
Validation record
Test method, acceptance criteria, sample or serial identity, measured result fields, and disposition. Example scope: Calibrate voltage and temperature channels and correlate SOC and SOH estimates with laboratory cycling data.
Production release
First-article status plus the agreed SPI, AOI, X-ray, ICT, FCT, programming, rework, OQA, labeling, and packing records.
Project-specific fields, retention periods, sampling rules, measured limits, and customer approvals are confirmed during RFQ and protected under the applicable confidentiality agreement.
Development and production controls
Manufacturing scope represented here
- Wireless cell-data aggregation.
- Battery-state and fault supervision.
- Gateway, logging, and service interfaces.

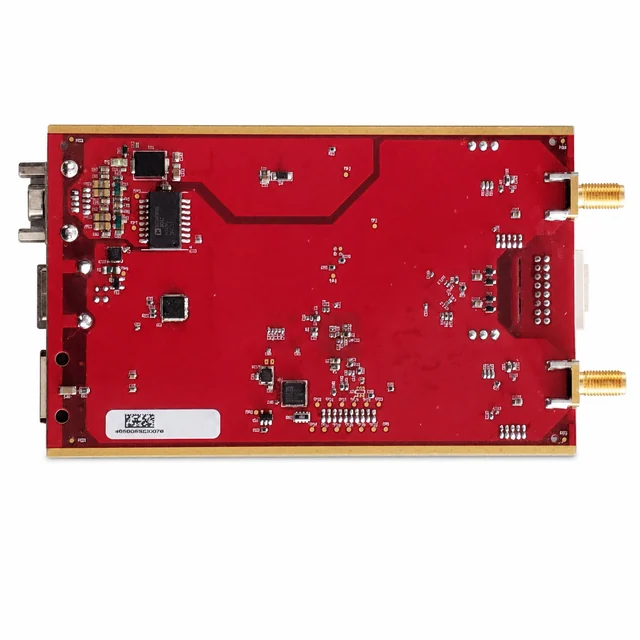

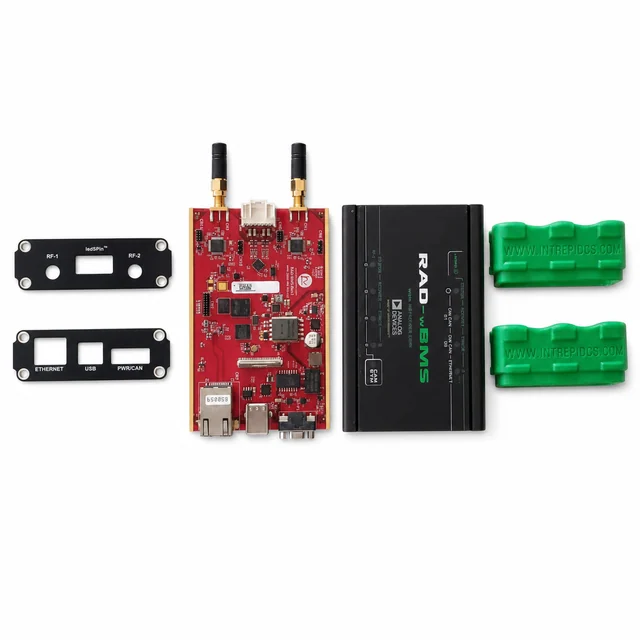

Technical image review
Board-level evidence
White-background views are published to make component placement, interfaces and assembly boundaries easier to inspect.
