Robotic Lawn Mower Control and Power PCBA

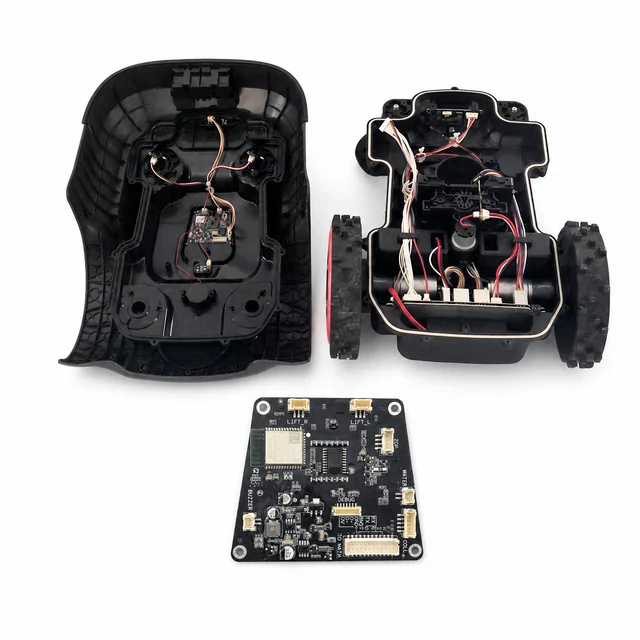

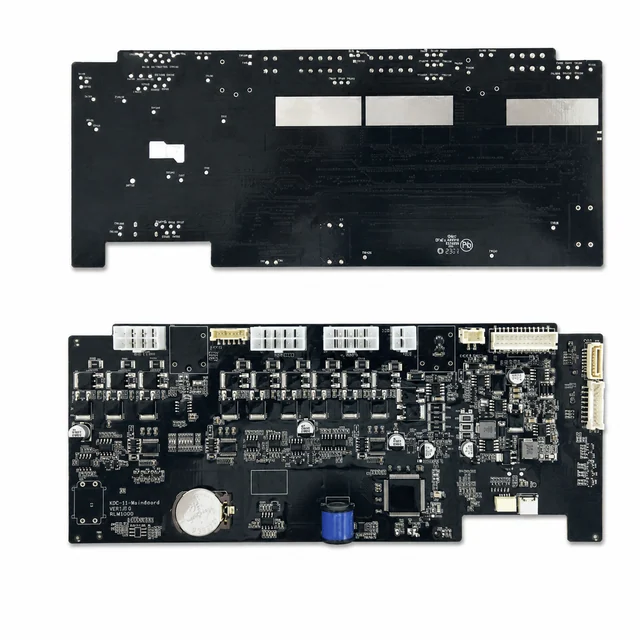

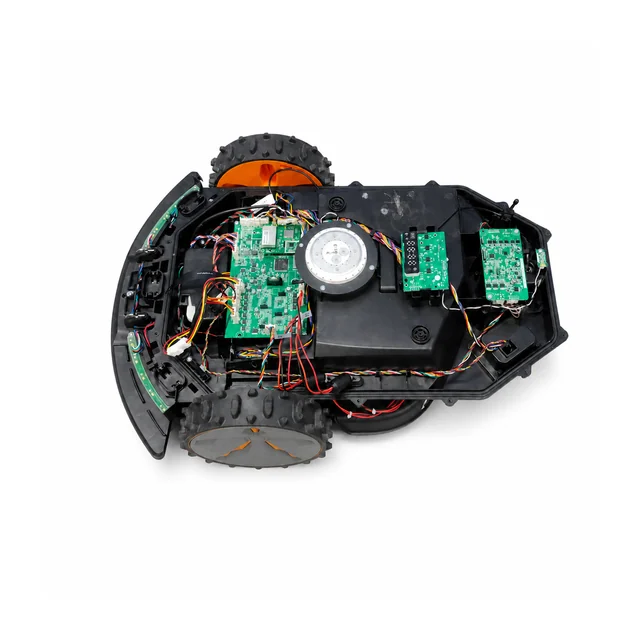

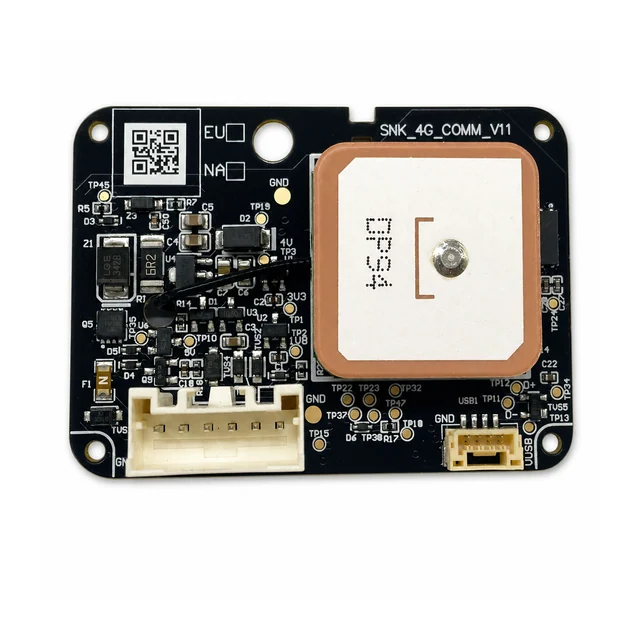

An FCC-photo reference spanning the RLM1000 control board, user-interface board, wireless section, labeled safety and sensor connectors, and a large mainboard with repeated power channels.

Discuss a similar buildBrowse all cases
Robotic Lawn Mower Control and Power PCBA — engineering project view 1 Robotic Lawn Mower Control and Power PCBA — engineering project view 2Robotic Lawn Mower Control and Power PCBA — engineering project view 3
ReferenceHOME-02SectorConnected HomeEvidenceArchitecture · risks · validation · release packet

Project context

A representative engineering program

An FCC-photo reference spanning the RLM1000 control board, user-interface board, wireless section, labeled safety and sensor connectors, and a large mainboard with repeated power channels.

System architecture

How the electronics are organized

A representative battery platform distributes a protected high-current bus to traction, blade, and auxiliary actuators while DC/DC rails power the real-time controller, sensor interfaces, wireless board, and display; safety inputs arbitrate every motion command locally.

Engineering risks to close

What must be resolved before release

  • Handle motor-start, stall, and regenerative transients without disturbing sensing or wireless control.
  • Guarantee rapid blade shutdown for lift, tilt, collision, or internal-communication faults.
  • Survive condensation, mud, fertilizer contamination, vibration, and sealed-enclosure thermal loading.

Validation plan

Evidence expected before production

  • Inject lift, tilt, collision, sensor-disagreement, motor-stall, and communication-timeout faults.
  • Measure blade stopping time, slope start and stop behavior, charging faults, and full-load temperature rise.
  • Run rain, ingress, damp-heat, corrosion, vibration, motor-EMC, ESD, EFT, and wireless-coexistence tests.

Decision-ready evidence packet

What a comparable RFQ should define

This checklist turns the technical story into reviewable inputs and release records. It describes what buyers and manufacturers should agree—not a claim that every listed record applies to every build.

Design baseline

Released schematic or block diagram, interface table, power states, critical constraints, and revision owner.

Manufacturing release

Gerber or ODB++, stack-up, centroid data, assembly drawings, approved DFM dispositions, and panel assumptions.

Material control

Released BOM revision, manufacturer part numbers, AVL or alternate rules, no-substitute lines, MSL handling, and exception approvals.

Validation record

Test method, acceptance criteria, sample or serial identity, measured result fields, and disposition. Example scope: Inject lift, tilt, collision, sensor-disagreement, motor-stall, and communication-timeout faults.

Production release

First-article status plus the agreed SPI, AOI, X-ray, ICT, FCT, programming, rework, OQA, labeling, and packing records.

Project-specific fields, retention periods, sampling rules, measured limits, and customer approvals are confirmed during RFQ and protected under the applicable confidentiality agreement.

Development and production controls

Manufacturing scope represented here

  • Multi-axis motor and actuator control.
  • Safety-sensor and UI integration.
  • Outdoor power-electronics development.
