16-Zone Smart Irrigation Controller PCBA

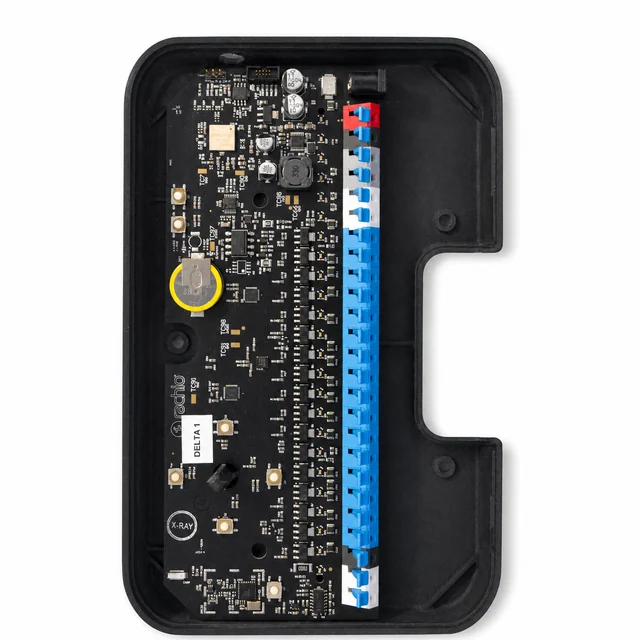

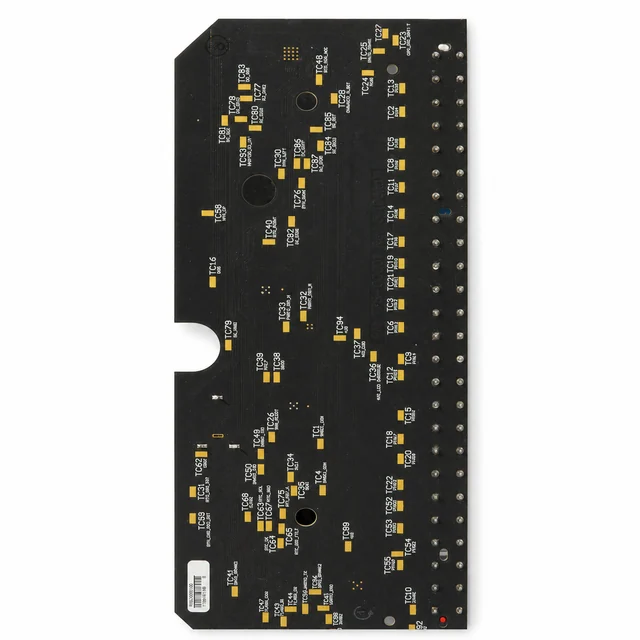

An FCC-photo reference showing a large 16-zone controller with dense field-wiring terminals, repeated output stages, a backup-cell location, local controls, and extensive test pads.

Discuss a similar buildBrowse all cases
16-Zone Smart Irrigation Controller PCBA — engineering project view 1 16-Zone Smart Irrigation Controller PCBA — engineering project view 216-Zone Smart Irrigation Controller PCBA — engineering project view 3
ReferenceHOME-03SectorConnected HomeEvidenceArchitecture · risks · validation · release packet

Project context

A representative engineering program

An FCC-photo reference showing a large 16-zone controller with dense field-wiring terminals, repeated output stages, a backup-cell location, local controls, and extensive test pads.

System architecture

How the electronics are organized

A typical irrigation controller converts an external supply into logic rails, schedules mutually managed zone outputs, drives long-cable solenoid loads, and can supervise rain, flow, common, or master-valve signals while retaining local timing during network loss.

Engineering risks to close

What must be resolved before release

  • Protect repeated inductive outputs and logic ground from long-wire surge and lightning transients.
  • Detect open, shorted, or overloaded valves without nuisance trips or adjacent-channel coupling.
  • Maintain reliable schedules, RTC state, and safe maximum run times through outages and weak connectivity.

Validation plan

Evidence expected before production

  • Exercise all 16 channels individually and in permitted combinations with correlated valve loads.
  • Test open and short circuits, long-line inductive transients, supply variation, RTC drift, and repeated power loss.
  • Run surge, ESD, EFT, damp-heat, freeze-thaw, terminal-cycle, weak-network, and interrupted-update testing.

Decision-ready evidence packet

What a comparable RFQ should define

This checklist turns the technical story into reviewable inputs and release records. It describes what buyers and manufacturers should agree—not a claim that every listed record applies to every build.

Design baseline

Released schematic or block diagram, interface table, power states, critical constraints, and revision owner.

Manufacturing release

Gerber or ODB++, stack-up, centroid data, assembly drawings, approved DFM dispositions, and panel assumptions.

Material control

Released BOM revision, manufacturer part numbers, AVL or alternate rules, no-substitute lines, MSL handling, and exception approvals.

Validation record

Test method, acceptance criteria, sample or serial identity, measured result fields, and disposition. Example scope: Exercise all 16 channels individually and in permitted combinations with correlated valve loads.

Production release

First-article status plus the agreed SPI, AOI, X-ray, ICT, FCT, programming, rework, OQA, labeling, and packing records.

Project-specific fields, retention periods, sampling rules, measured limits, and customer approvals are confirmed during RFQ and protected under the applicable confidentiality agreement.

Development and production controls

Manufacturing scope represented here

  • Scalable multi-zone output control.
  • Field-wiring protection and diagnostics.
  • Offline scheduling and RTC integration.
