Connected Air Purifier Power and Control PCBA Set

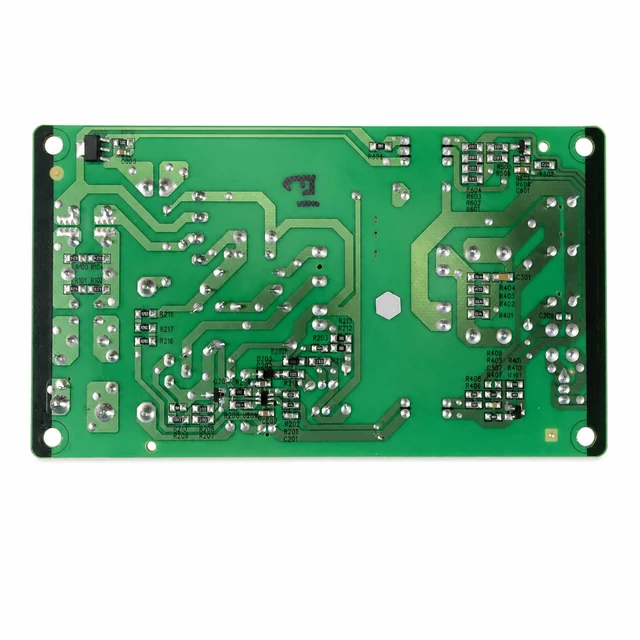

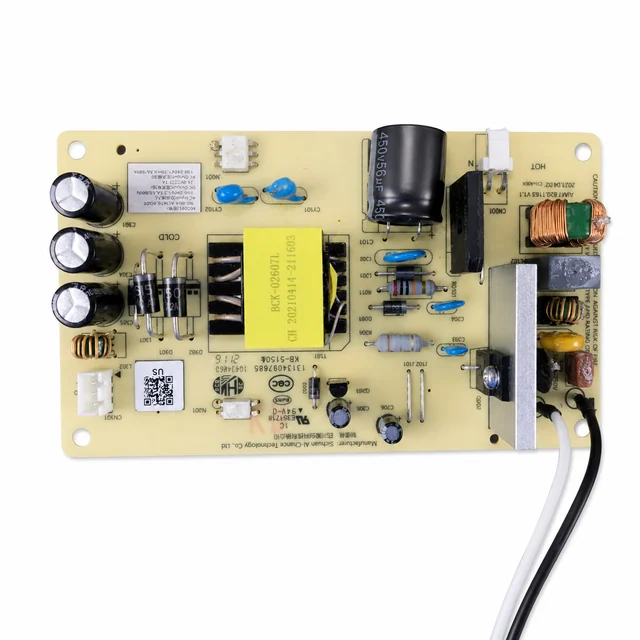

An FCC-photo reference showing a discrete offline power board with transformer, high-voltage capacitor, feedback isolation and heatsinking, plus a separate MCU and radio control board.

Discuss a similar buildBrowse all cases
Connected Air Purifier Power and Control PCBA Set — engineering project view 1 Connected Air Purifier Power and Control PCBA Set — engineering project view 2Connected Air Purifier Power and Control PCBA Set — engineering project view 3
ReferenceHOME-11SectorConnected HomeEvidenceArchitecture · risks · validation · release packet

Project context

A representative engineering program

An FCC-photo reference showing a discrete offline power board with transformer, high-voltage capacitor, feedback isolation and heatsinking, plus a separate MCU and radio control board.

System architecture

How the electronics are organized

A typical architecture isolates mains conversion on the power board, supplies the fan and low-voltage electronics, and lets the control board filter external air-quality data, command fan speed, read tachometer feedback, operate the local UI, and manage wireless functions.

Engineering risks to close

What must be resolved before release

  • Control fan-start and switching noise without degrading particulate sensing or radio performance.
  • Maintain isolation, high-voltage capacitor life, and thermal margin during blocked-airflow and dusty operation.
  • Convert noisy, warming-up sensor data into stable automatic control with useful fault degradation.

Validation plan

Evidence expected before production

  • Test input range, startup surge, fan stall, blocked airflow, output ripple, full-load temperature, and dust aging.
  • Perform applicable dielectric, single-fault, surge, EFT, ESD, conducted-emission, and radiated-emission tests.
  • Evaluate sensor warm-up, particulate steps, low-level drift, fan feedback, acoustic behavior, weak networks, and update power loss.

Decision-ready evidence packet

What a comparable RFQ should define

This checklist turns the technical story into reviewable inputs and release records. It describes what buyers and manufacturers should agree—not a claim that every listed record applies to every build.

Design baseline

Released schematic or block diagram, interface table, power states, critical constraints, and revision owner.

Manufacturing release

Gerber or ODB++, stack-up, centroid data, assembly drawings, approved DFM dispositions, and panel assumptions.

Material control

Released BOM revision, manufacturer part numbers, AVL or alternate rules, no-substitute lines, MSL handling, and exception approvals.

Validation record

Test method, acceptance criteria, sample or serial identity, measured result fields, and disposition. Example scope: Test input range, startup surge, fan stall, blocked airflow, output ripple, full-load temperature, and dust aging.

Production release

First-article status plus the agreed SPI, AOI, X-ray, ICT, FCT, programming, rework, OQA, labeling, and packing records.

Project-specific fields, retention periods, sampling rules, measured limits, and customer approvals are confirmed during RFQ and protected under the applicable confidentiality agreement.

Development and production controls

Manufacturing scope represented here

  • Isolated offline power conversion.
  • Fan speed and feedback control.
  • Air-quality sensing and wireless UI integration.
