Multi-Channel Home Energy Monitor PCBA

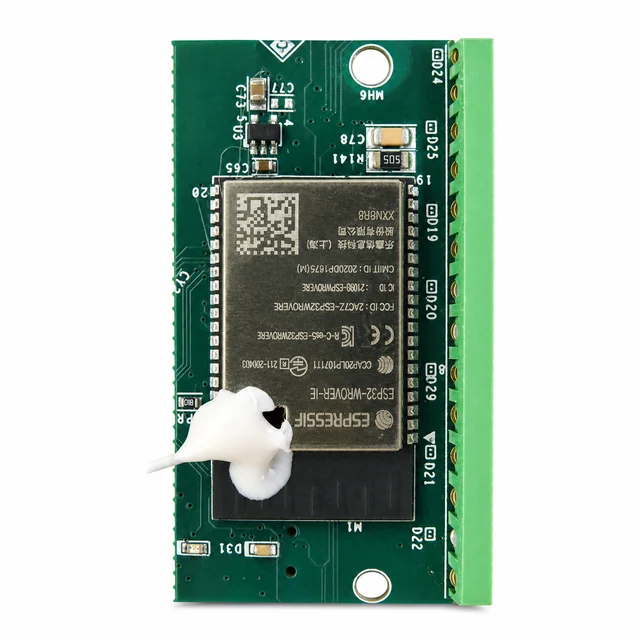

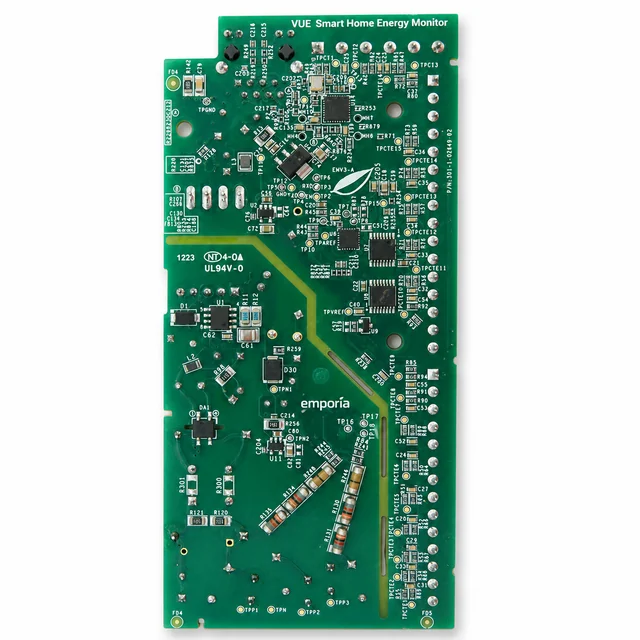

An FCC-photo reference showing an EMV3-A board with repeated current-transformer input channels, voltage-sensing components, isolation slots, dense test access, and an ESP32-WROVER-IE module with external antenna.
Project context
A representative engineering program
An FCC-photo reference showing an EMV3-A board with repeated current-transformer input channels, voltage-sensing components, isolation slots, dense test access, and an ESP32-WROVER-IE module with external antenna.
System architecture
How the electronics are organized
A representative monitor derives protected low-voltage power, conditions line-voltage references and multiple CT signals, synchronously samples the channels, computes RMS, power factor and accumulated energy, and reports results through local network connectivity.
Engineering risks to close
What must be resolved before release
- Maintain shock protection and surge robustness while measuring small signals referenced to a mains installation.
- Control gain, phase, offset, temperature drift, saturation, and channel crosstalk across many CT inputs.
- Preserve calibration, accumulated-energy data, secure connectivity, and real-time sampling through outages and updates.
Validation plan
Evidence expected before production
- Use traceable power sources to test 50 and 60 Hz, low-to-full scale, power factor, harmonics, CT reversal, offset, saturation, and crosstalk.
- Perform applicable dielectric, insulation, surge, EFT, ESD, overvoltage, terminal-misuse, single-fault, and thermal testing.
- Verify per-channel automated calibration, temperature drift, outage data consistency, network recovery, secure boot, and update rollback.
Decision-ready evidence packet
What a comparable RFQ should define
This checklist turns the technical story into reviewable inputs and release records. It describes what buyers and manufacturers should agree—not a claim that every listed record applies to every build.
Design baseline
Released schematic or block diagram, interface table, power states, critical constraints, and revision owner.
Manufacturing release
Gerber or ODB++, stack-up, centroid data, assembly drawings, approved DFM dispositions, and panel assumptions.
Material control
Released BOM revision, manufacturer part numbers, AVL or alternate rules, no-substitute lines, MSL handling, and exception approvals.
Validation record
Test method, acceptance criteria, sample or serial identity, measured result fields, and disposition. Example scope: Use traceable power sources to test 50 and 60 Hz, low-to-full scale, power factor, harmonics, CT reversal, offset, saturation, and crosstalk.
Production release
First-article status plus the agreed SPI, AOI, X-ray, ICT, FCT, programming, rework, OQA, labeling, and packing records.
Project-specific fields, retention periods, sampling rules, measured limits, and customer approvals are confirmed during RFQ and protected under the applicable confidentiality agreement.
Development and production controls
Manufacturing scope represented here
- Scalable multi-channel CT measurement.
- Voltage-current phase and energy computation.
- Wi-Fi, external antenna, and test-data traceability.
Technical image review
Board-level evidence
White-background views are published to make component placement, interfaces and assembly boundaries easier to inspect.
