High-mix production model
Multiple variants, connector options, and firmware versions can be managed with clear release rules.
High-mix PCBA for automation and control systems
Industrial Control PCBA
We coordinate long-life control builds around stable materials, test coverage, variant handling, and traceable production records.
Representative industrial controller board context for mixed technology, connector density, and long-life sourcing.
Service life riskPlan sourcing, alternates, firmware, and repeat records for long-life products.
Functional reliabilityMatch assembly, programming, coating, and testing to field environment.
Variant supportManage connectors, options, labels, and firmware revisions across product families.
Next decisionShare operating environment, test criteria, and forecast.
Long-life BOM control
Lifecycle, alternates, and replacement risk are reviewed for products that must stay serviceable.
Test-driven release
Functional checks, programming, and inspection evidence are matched to product risk and buyer expectations.
Industrial applications that fit this service
This page is for procurement and engineering teams sourcing PCBA for automation, energy, control, and machine electronics.
PLC and I/O boards
Connector-heavy boards with signal, power, and firmware requirements.
Industrial gateways
Communication modules, edge devices, and controllers with variant and labeling needs.
Sensor and measurement modules
Stable soldering, cleaning, calibration support, and repeatable test planning.
Motor and power control boards
Thermal, current path, terminal, and coating expectations reviewed before production.
Industrial control PCBA scope for long service cycles
Industrial buyers need boards that can be repeated, serviced, and tested consistently across years.
Capability range
- PLC, gateway, HMI, sensor, I/O, and power boards
- Connector-heavy SMT/THT and mixed assemblies
- Firmware, label, and variant handling
- Coating, cleaning, and packaging options when needed
Testing and controls
- Functional test planning with customer criteria
- Programming, calibration, or fixture support
- Lifecycle and alternate-part review
- Revision and service-spare record control
Buyer deliverables
- Operating-environment risk comments
- Assembly and test plan notes
- Lot, firmware, and revision records
- Repeat-build sourcing notes
Representative industrial and connected-control production experience
Authorized board-level images show relevant build patterns across multi-output control, power conversion, signal acquisition, power continuity, wireless gateways, and compact sensing. Public descriptions stay neutral where product identities or commercial details are confidential.
CoverageSix representative control-board build types
Evidence basisProduction records or customer authorization retained
Public boundaryNo unsupported customer, compliance, or field-performance claim

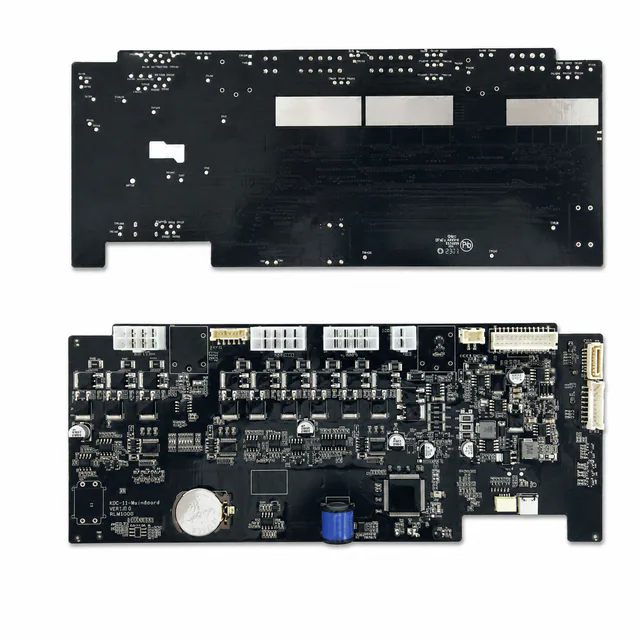

Multi-axis equipment controller
A large mixed-function board coordinates multiple switched loads, communication interfaces, connectors, and firmware-controlled operating states.
- Connector map and output-channel verification
- Representative-load, current, and fault-state testing

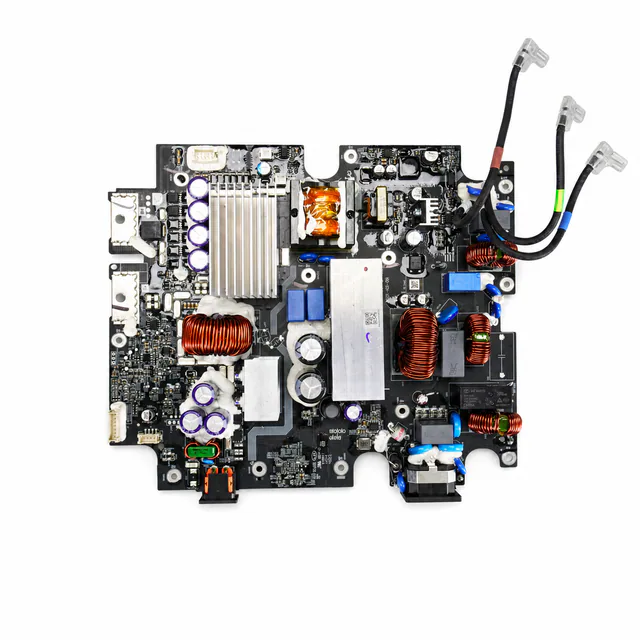

Bidirectional power-conversion board
High-current paths, magnetics, thermal interfaces, heavy components, and cable exits require mechanical and electrical controls beyond normal SMT inspection.
- Creepage, polarity, torque, and thermal-path review
- Power-stage inspection and controlled-load testing

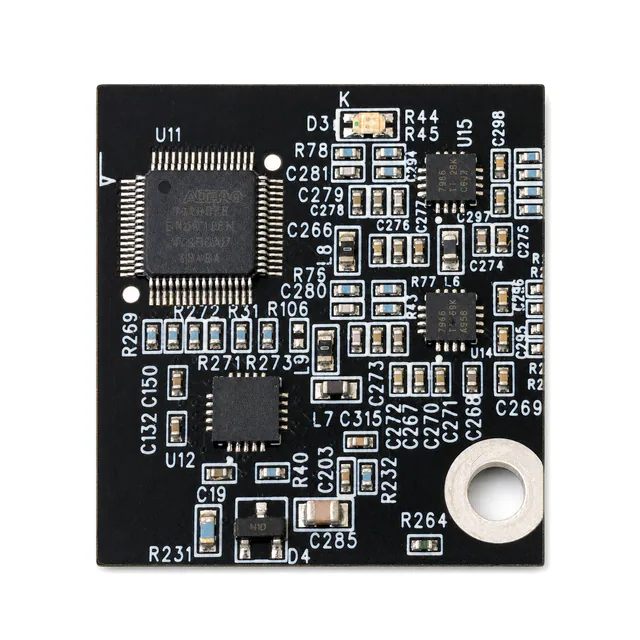

Mixed-signal acquisition module
Dense analog filtering, conversion, and programmable logic make cleanliness, component control, and repeatable calibration inputs important.
- Analog-path cleanliness and noise review
- Reference-input, calibration, and limit verification

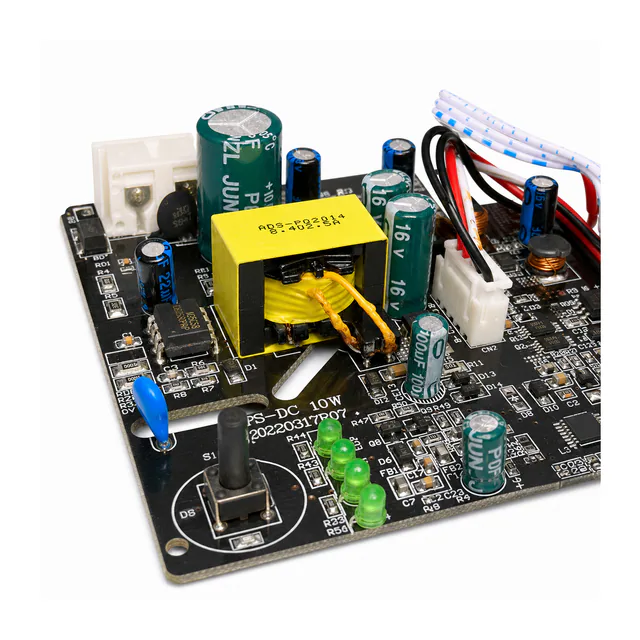

DC hold-up and filtering controller
Conversion stages, energy storage, wired power interfaces, and status outputs must behave predictably across normal operation and source interruption.
- Load-step, transition, and restart sequence checks
- Polarity, temperature-rise, and output-ripple review

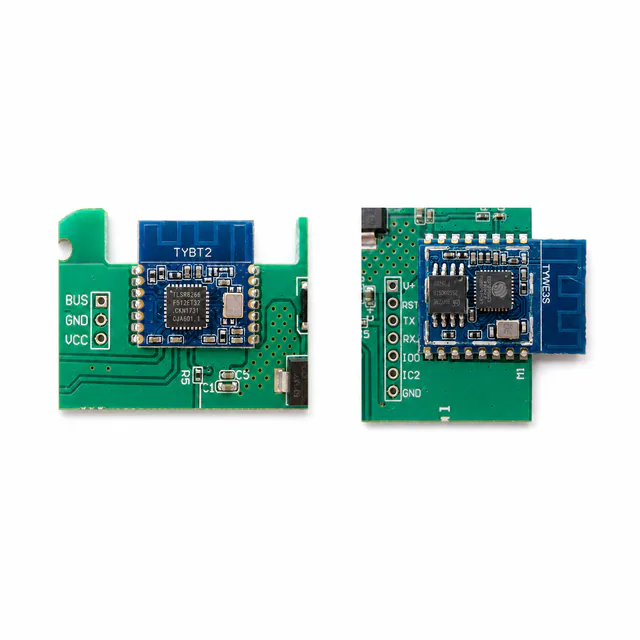

Multi-radio gateway interface
Compact radio modules, PCB antennas, host interfaces, firmware identities, and enclosure placement have to be controlled as one connectivity system.
- Module, firmware, and identity traceability
- Pairing, recovery, range, and coexistence checks

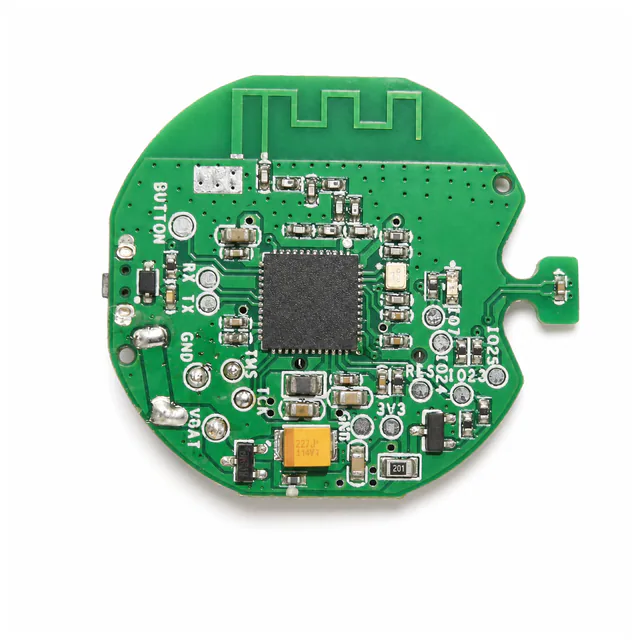

Low-power environmental sensor node
A compact sensing board combines environmental inputs, low-power processing, wireless communication, and tight mechanical integration.
- Sensor offset and controlled-reference checks
- Standby current, radio recovery, and firmware validation
Evidence and confidentiality: publication is backed by retained production records or customer authorization. Program identities, commercial relationships, schematics, BOMs, firmware, test limits, and measured results remain confidential unless separately approved. The images demonstrate relevant engineering and manufacturing experience; they do not imply a public customer relationship, product endorsement, certification, or field-performance guarantee.
What to share for an accurate RFQ
Complete files help us return a cleaner quotation with fewer assumptions and fewer hidden changes later.
Use the PCBA RFQ Package Checklist to assemble the release files, or review the prototype-to-low-volume readiness guide before a pilot build.
Files and project details
- Gerber or ODB++ package with revision and stack-up if available
- BOM with lifecycle notes, alternates, and critical components marked
- Centroid, assembly drawing, and connector orientation notes
- Firmware, programming, calibration, or functional test requirements
- Coating, cleaning, thermal, and environmental requirements
- Forecast, service spare demand, and expected repeat order rhythm
Decisions to confirm early
- Define long-life components and acceptable alternates
- Confirm test fixture need for recurring builds
- Clarify connector, terminal, and mechanical assembly requirements
- Agree coating or protection scope for harsh environments
- Confirm revision ownership for future ECO changes
How the manufacturing workflow runs
The workflow is built to reduce uncertainty before production release and keep useful records for repeat orders.
Application review
We review operating environment, lifecycle expectation, and product family structure.
Manufacturing plan
DFM, sourcing, test, coating, and assembly handling are matched to product risk.
Controlled build
SMT/THT, connector assembly, programming, inspection, and test follow approved release files.
Repeat support
Records and sourcing notes are retained so repeat lots and service spares are easier to manage.
Industrial PCBA controls for repeat reliability
Industrial buyers need stability across years, not just one shipment. We structure records for long-term support.
Connector and terminal checks
Orientation, soldering, mechanical fit, and strain risks are reviewed for heavy components.
Functional test planning
ICT, FCT, firmware, calibration, or customer test steps are matched to field risk.
Environmental protection
Coating, cleaning, packaging, and handling are planned when the use environment requires it.
Lifecycle records
Approved alternates, substitutions, and revisions are documented for service continuity.
Industrial PCBA output for long-life controls
Industrial control boards often outlive consumer supply cycles. We build with service life, variant stability, and functional test planning in mind.
Practical deliverables
- Lifecycle and alternate sourcing review for critical parts
- Connector, terminal, and mechanical assembly risk notes
- Functional test, firmware, and calibration planning inputs
- Coating, cleaning, and environment protection notes if needed
- Repeat-build records for service spare and future lots
Decision evidence
Lifecycle notes
Functional test plan
Variant record
Repeat-build log
Buyer question
How this service answers it
When it matters most
Service life
Parts and alternates are reviewed beyond the first order.
Use when the board must stay available for maintenance.
Functional risk
Firmware, calibration, and test are planned according to field use.
Use when visual inspection alone is not enough.
Mechanical load
Connectors, terminals, and cables are checked for assembly and strain risk.
Use when boards include heavy or exposed interfaces.
Environment
Coating, cleaning, packaging, and protection are defined by use case.
Use when the product works in harsher operating conditions.
Industrial control PCBA risks to catch early
These risks often appear only after field use unless they are reviewed in the manufacturing plan.
Risks to clarify
- Long-life parts selected without alternate strategy
- Connector orientation or mechanical keep-out not clear in drawing
- Power and thermal requirements missing from test expectations
- Coating or cleaning requirements not specified before quote
- Firmware variant not linked to product label and BOM
- Repeat build records not structured for service spares
Related service paths
For industrial programs, include expected service life and repeat order rhythm. It changes how sourcing, alternates, and test investment should be planned.
FAQ
- Can you support PLC and automation control boards?
Yes. We support control boards, gateways, sensor modules, I/O boards, and related industrial electronics. - Can you handle high-mix industrial variants?
Yes. Variant rules are mapped through BOM, firmware, labels, and release records. - Can conformal coating be included?
Yes, when coating areas, keep-out zones, inspection criteria, and environmental expectations are defined. - Can you support functional testing?
Yes. We can work with customer-provided test instructions, fixtures, firmware, or acceptance criteria. - Can repeat orders use the same approved records?
Yes. Repeat build continuity is one of the reasons to structure low-volume and industrial programs carefully.
Build an industrial PCBA plan
Send files, forecast, operating environment, and test expectations. We will identify sourcing, assembly, and release controls for your program.
