Twenty reference architectures document the motor-control, pressure, thermal, stimulation, firmware, validation, and release decisions used in wellness electronics.
Filter by application or search by function. Each reference outlines control architecture, human-contact risks and tests to consider for the intended product.
20 of 20
MASS-08 · Full-Body & Foot CareVery High
4D Massage Chair Control
A representative system-control architecture for coordinating massage mechanisms, travel axes, recline actuators, air compression, heating, wired controls, and optional connectivity in a mains-powered chair.
The supplier image supports a mains-input mixed-technology control board with isolated power, a central controller, switching devices, and many connectors; rail voltages, connector functions, actuator count, insulation compliance, and 4D performance require program documentation and test evidence.

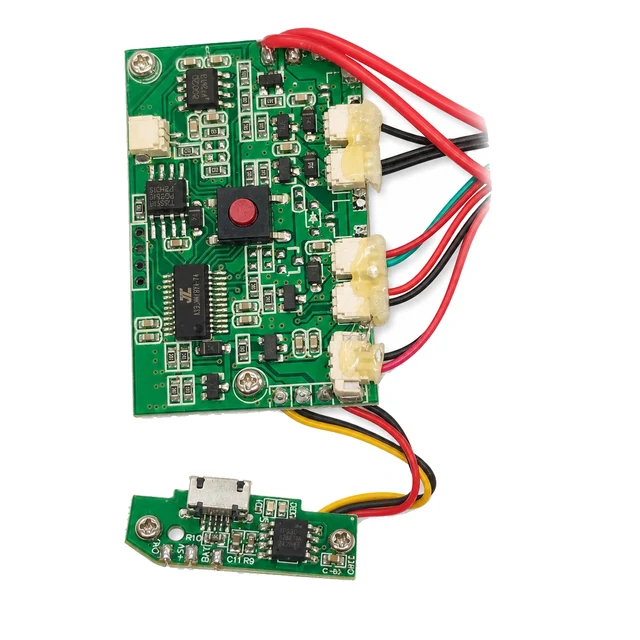

A representative multi-actuator platform for sequenced air compression, regulated warming, optional vibration or audio, rechargeable operation, and fail-safe pressure release.
The teardown clearly shows a main board, charging sub-board, battery, and multiple harnesses; valve count, pressure feedback, exact load mapping, wireless protocol, and certified safety limits remain unconfirmed.
Air CompressionTemperature ControlFail-Safe Release

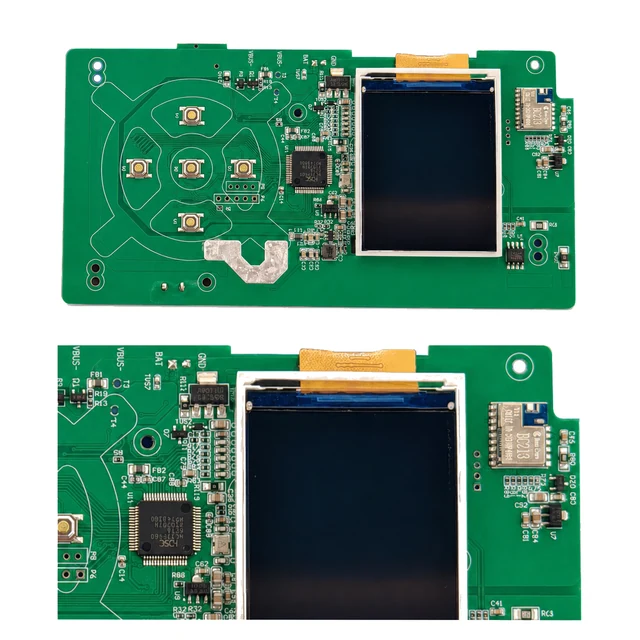

A representative cordless recovery-boot architecture for multi-chamber pressure sequencing, local display, battery operation, bilateral wireless coordination, and independent fail-safe release.
The image confirms an LCD, buttons, MCU, wireless module, and VBUS/BAT-related markings on an HMI board; the pump, valves, pressure sensor, battery configuration, and validated pressure envelope are not shown.

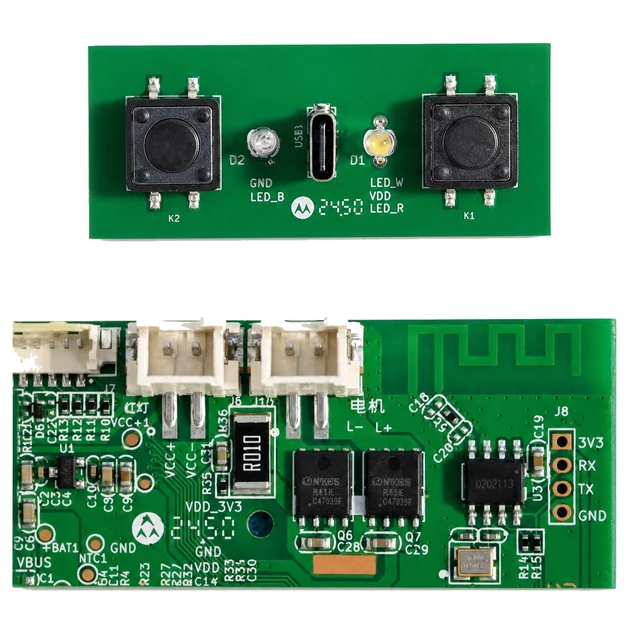

A representative low-voltage kneading platform for a geared motor, controlled reversal, current-based jam detection, local indication, optional warming, rechargeable power, and wireless interaction.
The assembly image confirms a geared brushed motor, battery pack, main board, light rings, button board, current-shunt and wireless features; heater installation, motor rating, gear ratio, position sensors, and wireless protocol require project confirmation.

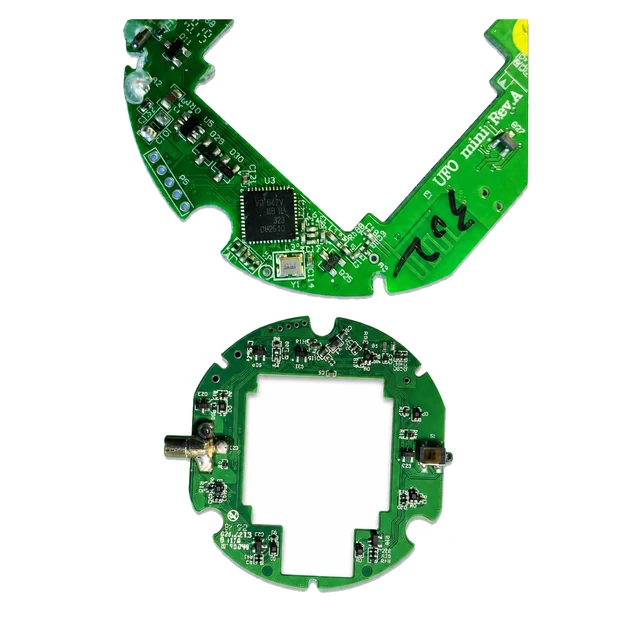

A representative wearable scalp-care platform for motorized massage and optional zoned light output, with wireless control, thermal supervision, contact interlocks, and rechargeable operation.
The image confirms an open-ring board, controller, clock, antenna region, and repeated channels; massage mechanism, light-source type, optical output, sensors, battery configuration, and efficacy claims are not established by the board image.

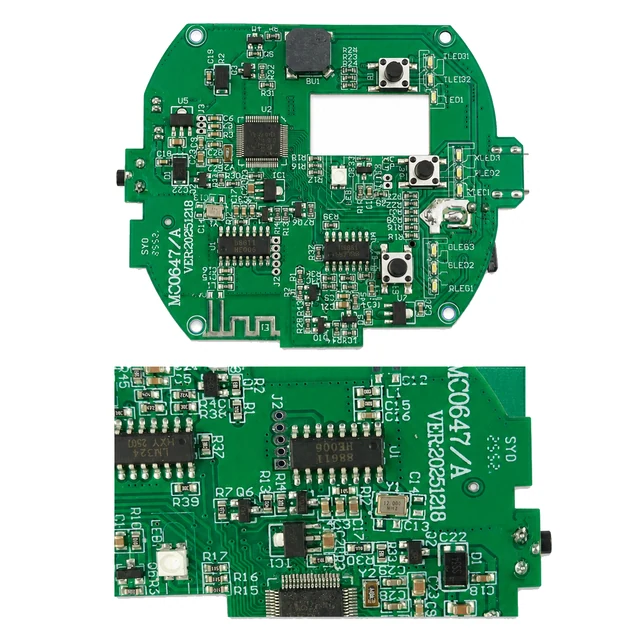

A representative compact negative-pressure platform for controlled suction, dynamic release, optional warming, battery charging, local indication, and wireless session control.
The teardown confirms a pump, tubing, battery, USB-C, buttons, LEDs, antenna, and main board; the pressure-sensor identity, valve topology, heating function, pressure limits, and any therapeutic or diagnostic claims need independent confirmation.

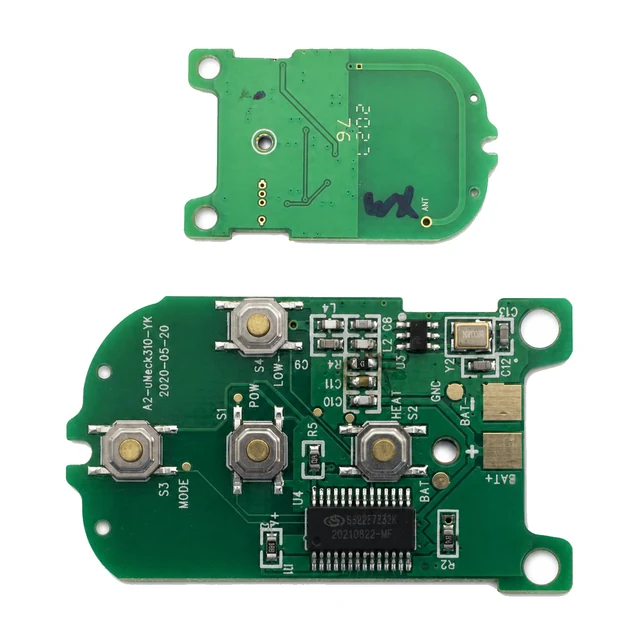

A representative wearable architecture combining locally limited electrical stimulation, contact-aware intensity control, regulated heating, battery power, and optional wireless interaction.
The image confirms buttons, battery pads, an MCU region, and a PCB antenna on a control board; stimulation topology, output limits, heater implementation, product classification, and therapeutic claims require independent engineering and regulatory evidence.

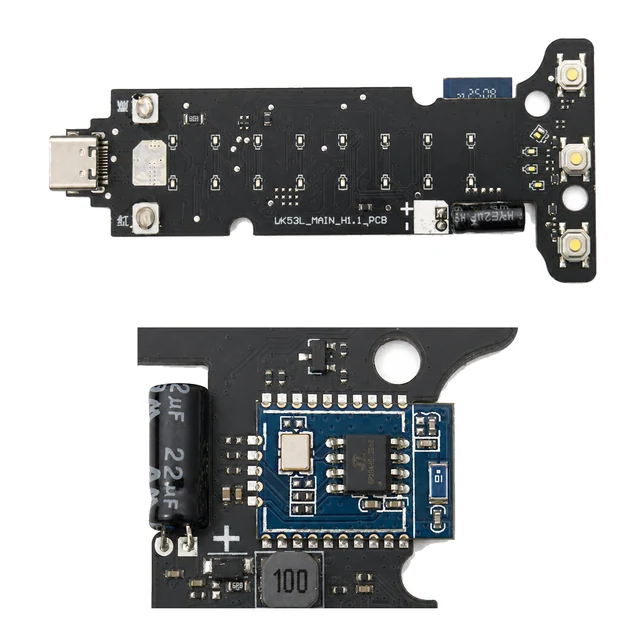

A representative wearable waist platform combining controlled electrical stimulation, broad-area heating, contact sensing, dual-cell energy management, local controls, and BLE sessions.
The teardown supports a long control board with USB-C, buttons, two cells, power-conversion components, and a BLE module; cell configuration, stimulation output, heater design, electrode material, regulatory classification, and efficacy are not proven by the image.

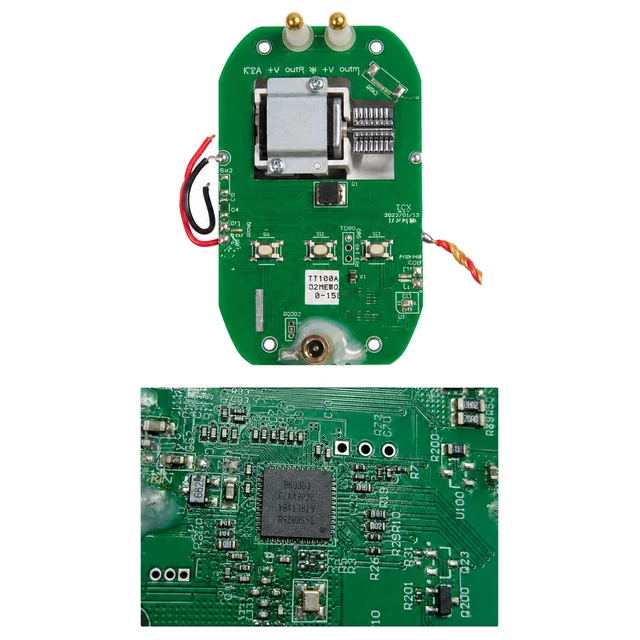

A representative facial-device platform combining controlled low-energy electrical output, electrode-contact supervision, mechanical vibration, rechargeable power, local controls, and optional wireless guidance.
The teardown confirms a mainboard, two metal electrode posts, battery, buttons, wireless antenna, and vibration mechanism; output topology and limits, electrode material, ingress rating, optional light functions, and cosmetic efficacy are not proven by the image.

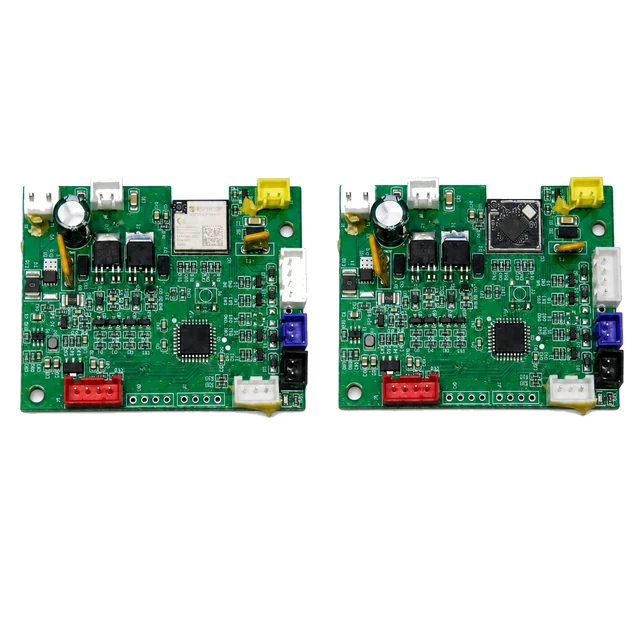

A representative mixed-actuator platform combining roller or vibration motors, air compression, warming, sensing, and wireless or panel control for foot-and-leg massage sequences.
The image supports a low-voltage main board with an MCU, wireless module, power devices, and many connectors; exact port mapping, pressure feedback, supply ratings, pneumatic design, and production safety limits require schematics and system measurements.

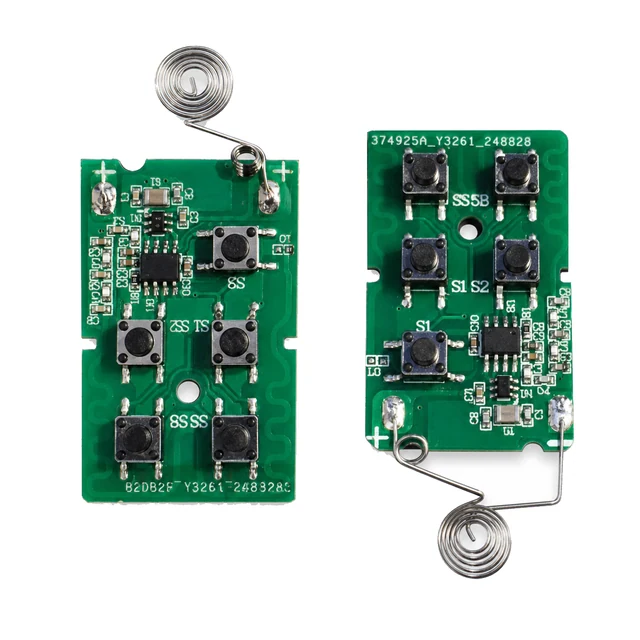

A representative foot-massager system architecture pairing a low-power wireless command board with a separate protected motor and heater controller in the appliance.
The image is a five-button battery remote with an antenna, not the appliance power board; motor count, supply, heater, sensors, wireless band, and complete safety behavior cannot be inferred until the main controller is available.

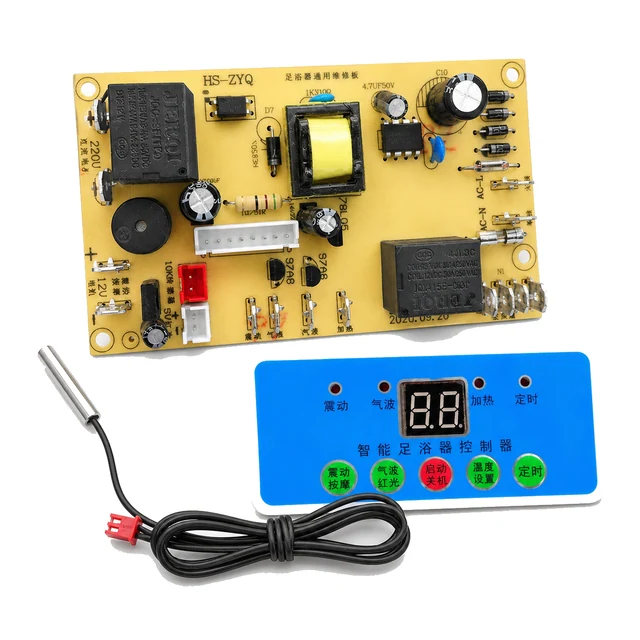

A representative mains-powered wet-environment architecture for controlled water heating, pump or massage loads, temperature and level supervision, isolated user controls, and independent protection against leakage, dry heating, and overtemperature.
The image is a generic service power-board, display, and temperature-probe set rather than evidence from a specified OEM product; load mapping, ratings, water-level and leakage protection, enclosure design, certification, and production suitability must be established for the target appliance.

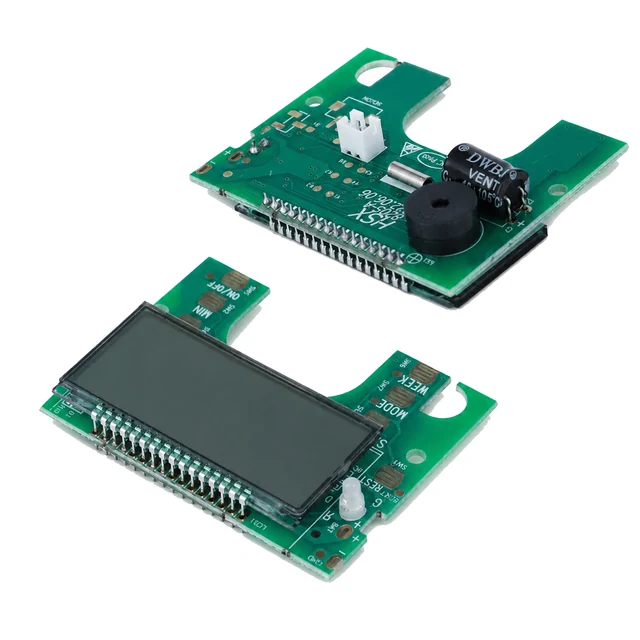

A representative hand-care architecture combining sequenced pneumatic compression, optional vibration and warming, an accessible LCD interface, and default pressure release.
The supplier image supports an LCD, key, buzzer, and connector UI sub-board only; the main controller, pneumatic circuit, pressure feedback, power source, heater rating, and safety performance require separate evidence.

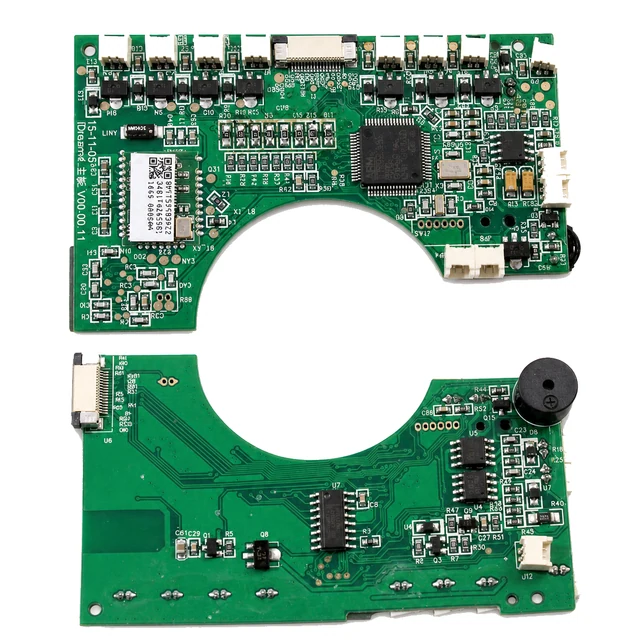

A representative multi-channel pneumatic control architecture for zoned head compression with optional warming or vibration, local interface support, wireless coordination, and default pressure release.
The U-shaped board visibly includes multiple connectors, grouped drivers, an MCU, wireless module, FPC connector, and buzzer; the exact pneumatic map, pressure range, battery system, and optional heat or vibration loads require interface and system evidence.

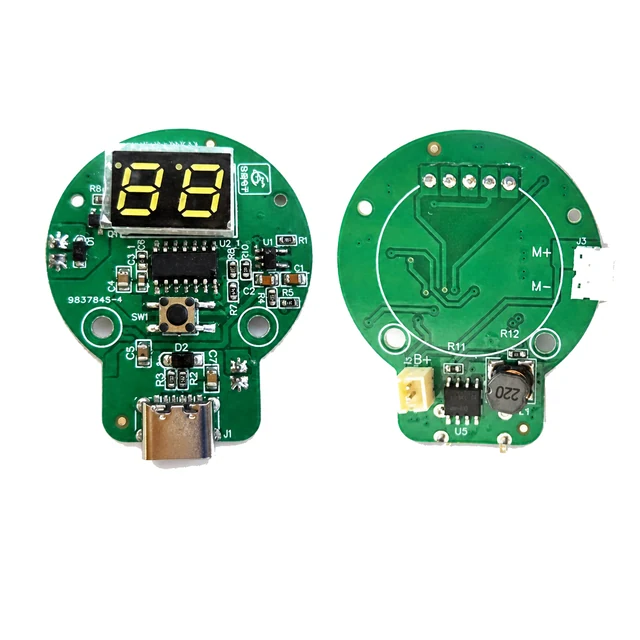

A representative low-voltage wearable controller for regulated knee warming, vibration levels, timed sessions, battery charging, and compact numeric indication.
The image confirms USB-C, a two-digit display, one key, a DC/DC inductor, battery markings, and an M+/M- motor connector; battery topology, heater and NTC pinout, charging protocol, temperature limits, and production readiness are not confirmed.

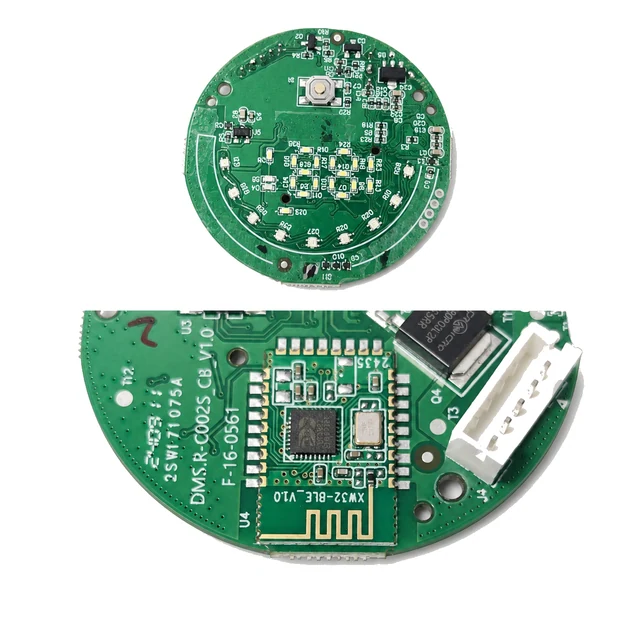

A representative development architecture for a high-output percussion massager with controlled motor startup, speed or load supervision, battery management, local indication, and optional wireless control.
The image primarily supports a display and wireless sub-board interpretation; motor type, power-stage topology, battery voltage, force sensing, and production performance require the main power board and measured project evidence.

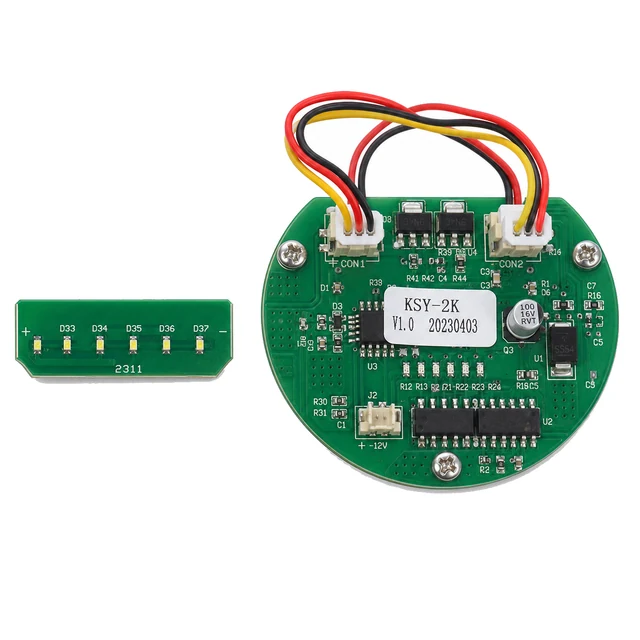

A representative compact motor-control platform for a pocket percussion massager balancing startup behavior, usable output, charging, indication, thermal limits, and mechanical packaging.
The teardown shows the mechanical assembly, a circular control board, and an LED sub-board, but motor technology, battery configuration, wireless functions, and rated performance are not established by the image.

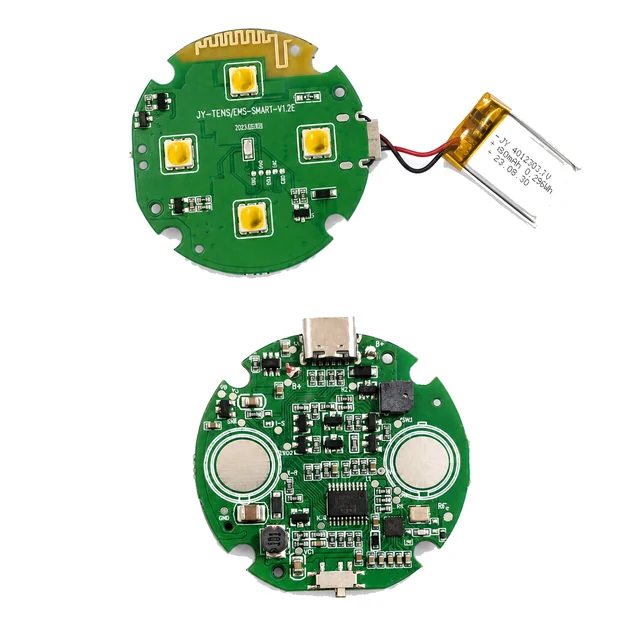

A representative miniature stimulation-pod architecture for rechargeable wireless sessions, defined pulse generation, attachment detection, local controls, independent energy limits, and safe output discharge.
The image confirms a circular wireless pod board, battery, USB-C, two electrode contacts, keys, antenna, inductor, and dense power circuitry; exact waveform, current regulation, TENS or EMS mode definition, classification, contraindications, and efficacy require controlled measurements and regulatory evidence.

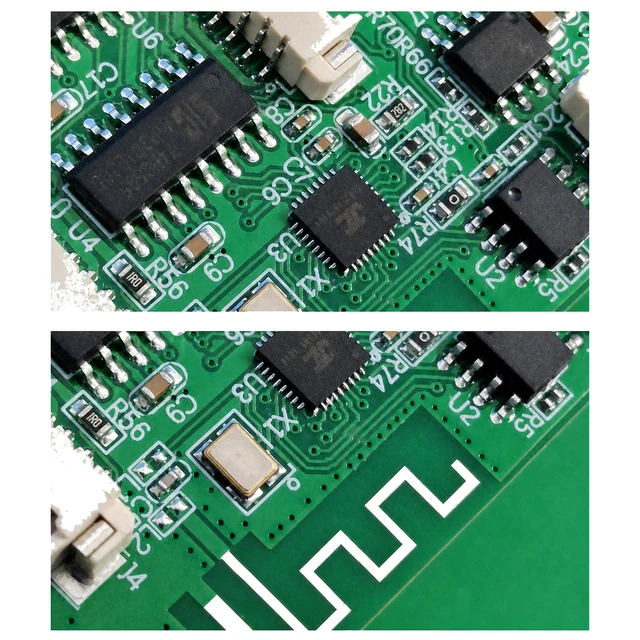

A representative thermoelectric platform for controlled heating and cooling with reversible high-current drive, dual-point temperature sensing, heat-side supervision, and condensation-aware operation.
The image is a partial control-board close-up with MCU, clock, connectors, and an antenna; the TEC, bidirectional power stage, sensors, fan, and thermal assembly are not shown and must be confirmed on the complete system.

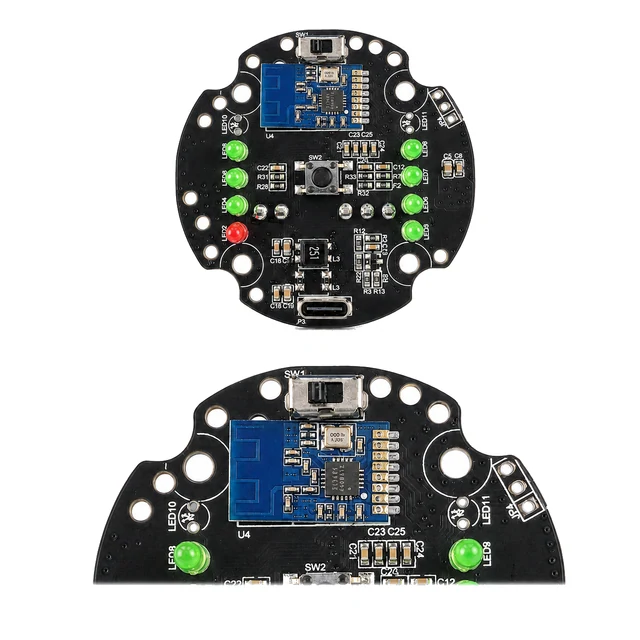

A representative high-current vibration platform for soft-start motor control, rechargeable operation, level indication, wireless training sessions, and protection inside a high-vibration cylindrical assembly.
The image confirms a circular dual-sided board with USB-C, switch, key, LEDs, wireless module, power components, and external connectors; motor type, battery series count, actual vibration output, load rating, heating option, and wireless protocol require system evidence.
What changes across massage and wellness electronics
The same PCBA approach does not fit every massage product. Actuators, human-contact outputs, sensing, power domains, and safe-state behavior determine the architecture and verification plan.
Swipe horizontally to compare control loads, sensing, connectivity, and risk columns.
Massage and wellness PCBA application architecture, sensing, connectivity, and risk comparison
Limits, position, current, water level, temperature
Wired control / optional wireless
Pinch protection, isolation, wet-environment and thermal safety
From a reference board to your product
Define the mechanism, actuators, contact surfaces, operating limits and fault responses for your product. Plan verification using the intended enclosure, power supply and mechanical assembly.
1
Define the product
Confirm the use area, mechanism, actuators, human-contact outputs, sensing, power, environment, and target markets.
Product requirement brief
I/O, load, and power table
Risk and compliance targets
2
Build the architecture
Lock power trees, interfaces, protection, control states, diagnostics, and service strategy.
System block diagram
Interface and protection matrix
Firmware state and fault model
3
Prototype and validate
Use engineering samples, standard loads, pressure and thermal fixtures, fault injection, lifecycle cycles, and environmental checks.
EVT / DVT engineering samples
Functional and fault test reports
Thermal, EMC, and lifecycle evidence
4
Release for production
Complete DFM/DFT, approved BOM, programming, test limits, work instructions, and revision control.
Gerber, BOM, firmware release
Programming and FCT package
Revision-controlled handoff
Engineering support behind the examples
Specify the motor, pressure, temperature and other output-control requirements. Agree the hardware, firmware, test methods and manufacturing files included in the development scope.
Hardware package
Electronics and power
Motor, H-bridge, pump, valve, TEC, heater, and stimulation outputs
Battery, adapter, mains isolation, and protection design
Pressure, NTC, current, contact, limit, and position sensing
RF, HMI, harness, thermal, ESD, sweat, and wet-environment planning
Embedded package
Firmware and connectivity
Safety state machines and controlled output recovery
Motor, pressure, temperature, and waveform algorithms
BLE, local UI, bilateral coordination, and OTA planning
Calibration, immutable limits, fault codes, and service logs
Release package
Verification and release
Standard-load, pressure, thermal, motion, and single-fault plans
Stall, overpressure, overtemperature, contact, and lifecycle validation
DFM/DFT, calibrated fixtures, programming, and FCT
BOM, firmware, parameters, calibration, and revision traceability
How to interpret the referencesVisible board features are separated from inferred functions and project-specific requirements that still need schematic, BOM, firmware, and sample verification.
Reference scope and project verification
What the library demonstrates
Massage-product understanding, architecture decomposition, human-contact risk control, verification planning, and the engineering handoff needed for a custom PCBA program.
What it does not claim
Reference images and visible brands are used for technical analysis. They do not imply endorsement, affiliation, an existing customer project, verified certification, or measured performance. Trademarks belong to their respective owners.
Discuss your massage or wellness electronics requirements
Share the product brief, use area, motor, pump, valve, heater, electrode or TEC requirements, sensing, power source, target market, expected volume, and any existing schematic or enclosure files. We will identify the architecture and validation questions to close first.
